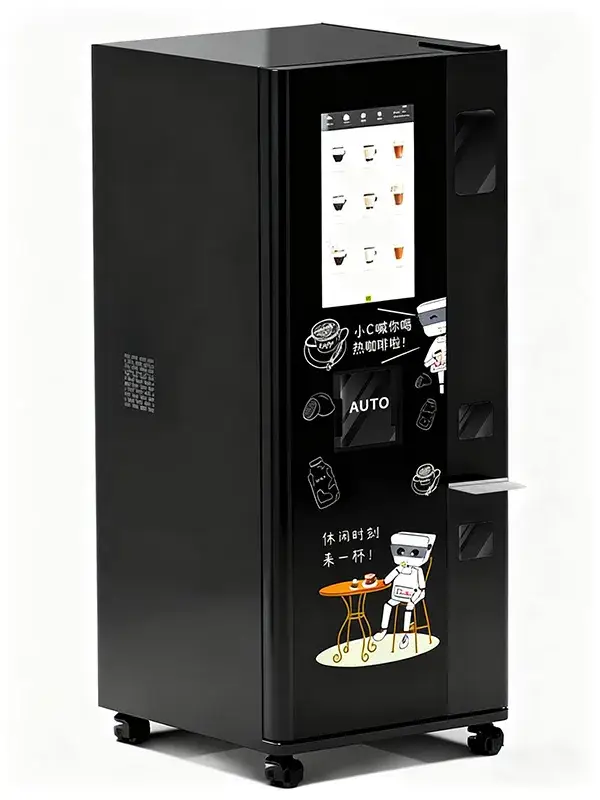

Bean-to-Cup Coffee Vending Machine
3000W
The commercial bean-to-cup coffee vending machine features a 21.5-inch smart touchscreen and an extraction system, supporting the customization of 12 coffee and tea beverages. A remote monitoring system allows for real-time tracking of ingredient levels and sales data. Utilizing compressor-based cooling and heating technology alongside a remote electronic lock security system, the coffee station ensures stable 24-hour unmanned operation in public areas such as office parks and commercial centers. The metal structure and food-grade components provide operators with a smart beverage solution that balances reliable output with long-term durability.
Applications
The coffee station is ideal for deployment in high-traffic locations such as office building breakrooms, university libraries, hospital lobbies, or shopping mall corridors.
Technical Specifications
| Voltage/Frequency |
220V 50Hz |
| Max. Power |
3000W |
| Standby Power |
100W |
| Net Weight |
275kg |
| Display |
21.5-inch capacitive touchscreen display |
| Payment |
QR code payment |
| Door Opening |
automatic door opening and closing |
| Dimensions |
700(W) x 755(D) x 1700(H)mm |
| Exterior material |
black finish with tempered glass panel |
| Housing material |
metal |
| Liquid additive contact parts |
silicone tubing with stainless steel pipe for the pump connection |
| Food contact parts |
canisters and bean hopper utilize food-grade materials |
| Water circuit components |
pipes and valves utilize temperature-resistant and anti-scaling materials |
Technical Specifications
| CPU |
Quad-core 64-bit Cortex-A552.0GHZ |
| Memory & Storage |
2GRAM/32G ROM |
| GPU |
Mali-G52 |
| Operating System |
Android11 |
| Water Processing |
compressor cooling + heating |
| Access Control |
electronic lock, supporting both software-controlled and remote unlocking |
| Appearance |
black + tempered glass panel (customizable) |
| Connectivity |
4G (built-in module) + Wi-Fi (2.4G and 5GHz) |
| Temperature Control |
The hot and cold water temperatures can be adjusted via parameter settings |
| Electrical Safety |
leakage protection breaker, anti-misoperation electronic lock, high-voltage component warnings |
| Smart Functions |
remote monitoring (inventory, fault alerts, sales data), automatic dual-tank water switching (Tank 1 priority) |
